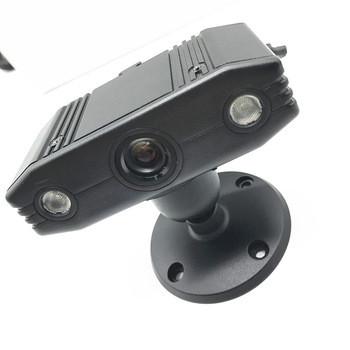

Car Collision 1080P Recording Red Light Alarm for Fleet Management
Police Controling
Specification:
CPU | ARM Cortex A7 Dual-Core@800MHZ,1080P@30fps H.264 |
Image Sensor | AR0230,1/2.7-Inch 2.1 Mp/Full HD |
Lens | Focal Length 3.8mm, Aperture 1.8mm, Degree 140° |
Power | Working Voltage 9V-16V, Maximum Current 1.5A, Standby Current is
less than 3mA |
TF Card | Maximum Support 64GB Card |
LCD Display | 2 inch, 320*240 |
GPS | SKG12BL,sensitivity-165dBm |
Loudspeaker | 4Ω2W,Size:Diameter:36mm,Thickness:4.7mm |
Working Temperature | -20℃～70℃ |
Description:
1) Whole device power consumption is less than 20W, standby current
is less than 3mA, the car ACC provides the device power and control
the device on/off, the device time is synchronized with GPS.
2) 2 inch(Tentative)LCD display is for camera’s calibration, review
the recording video and user setting, if there is no operation, the
LCD display will be closed after 3 minutes.
3) The device has 4 buttons,” OK”,” UP”,” DOWN”,” RESET”
(RESET is hidden within the device, the user can use a needle or
thin things to reset the device.)
4) Built-in ceramic GPS antenna,antenna is 5dBi,working frequency
is L1:1575.42MHz±1.023MHz,VSWR out is less than 1.5,antenna size
is:30mm*30mm*5mm
Functions:
1). Judge rear car speed( if only recognize the rear car in the
same lane?), get car speed by GPS and then calculate if this
distance is the safe distance which within 2s response(same lane)
2). LED light flashing if it’s shorter than 2S safe distance, the
light starts flashing at 1S following distance, the Flashing led
stop light need police brightness quality.
3). LED light flashing, in the meantime, start DVR function, stop
recording until the danger passed
4). Reserve a 2-inch size screen
5). Use a sensor with low light WDR to fulfill recognize & record
video evidence.
Application:
- Individual Safe Driving
- Fleet Management
- UBI
- Government Road Safe Driving
- Police Monitoring
How To Order:
- Please send below quote to us.
- Please add my WhatsApp: +8618143091279, and get more details.
- Or send the email: sales05@ywteck.com
FAQ:
Q: What's your MOQ?
A: 100pcs
Q: How to be your agent?
A: Please contact the sales, and get more details about the agent
conditions.
Q: Do you support the sample?
A: Yes.
Q: What payment terms do you support?
A: PayPal, Western Union, T/T...are available.
