New 3D HD 360 Degree camera bird view system car parking system
Product Description

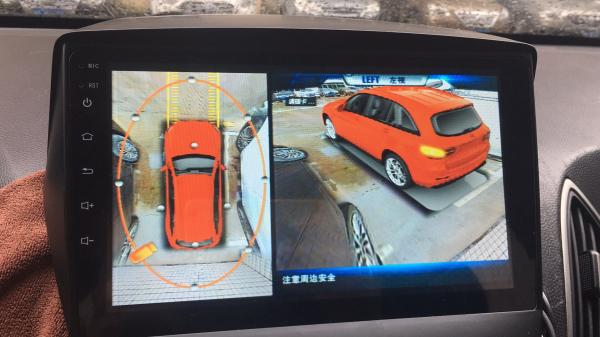

* 360 all round bird view system 360 degree view car camera system
* 360° seamless full view system with 4 cameras
* displaying real AHD Surround view of vehicle
* Super wide power : 9~36v power
* H.264 compression, 25 frame/sec
* 720P resolution cameras input, CVBS output
* 4 channel cameras recording with USB memory
* 360 view Panoramic driving box car camera system
Specifications:
| Item | Name | parameters |
360 parameters | Camera | Image sensor | SONY225 |
| Pixel Pitch | 720P |
| Video Resolution | 1280*720 |
| Horizontal Definition | 130TVlines |
| Video format | NTSC |
| Dynamic Range | >80dB |
| SNR | >50dB(AOC on) |
| Minimum Lumination | 0.15Lux |
| Angle | 180 degree |
| Video output | CVBS 1.0VPP 75Ohm/VGA |
| Host | Working Voltage | DC 12V |
| Disk Capacity | TF CARD:32G SDIO3.0/SDIO 2.0 |
| USB Disk: 128g USB 2.0 |
| Voltage | DC 9V~16V |
| Watts | 10W max |
| Currency | < 600mA (full load with recording) |
| Processor | 3520 |
| System Startup time | 10S |
| VideoStartup time | 15S |
| Video Output Format | CVBS/VGA |
| Video Signal Format | N/P |
| Language | Chinese/English |
| Working Temperature | .-30/+85℃ |
| processor model | 3520 DV300 |
| Storage Temperature | .-45/+95℃ |
| Size | 123(L)*81(W)*25(H) MM |
| | | |
3D special parameters | Video | Video Interface | BMWMIni connector |
| Input/output impedance | 75 |
| Amplitude | Typical 1Vpp, 1.2Vpp Maximum |
| Bandwidth | 8M |
| Sampling Frequency | 13.5MHz |
| Video Resolution | 1280*720 |
| DP | <0.8 degree TYP |
| DG | < 3% TYP |
| SNR | 70dB |
| Indicator Lamp/Blinker | High Beam | Optional |
| Left/Right Turning Blinker | YES |
| Reversing lamp | YES |
| G-sensor | BM250E | Bosch |
| Compression | Algorithm | H.264 Baseline@L3.1 |
| Resolution | 1440*960P @30fps |
| Bitrates | 5Mbps,2Gbyte/Hour |
| Recording Media | USB Disk(High Priority)/TF |
| Disk Capacity | TF CARD: | 32G SDIO3.0/SDIO 2.0 |
| USB Disk: | 128G USB 2.0 |
| Power Consumption | 4-CH DVR+360 panorama mode | 350mA |
| 4-CH DVR Mode | 180mA |
| Sleeping Model | < 10mA |
| Weight | | 220g |
| Environments | Working Temperature | .-30/+85℃ |
| Storage Temperature | .-45/+95℃ |
| Humidity | 0-95% |
| Voltage | Working Voltage | 9.5-36V |
• Service
1. We solemnly promise our products with 100% high-quality and 100%
superior service.
2. Strict producing process, aging test and QC to make sure high
quality production.
3. OEM & ODM are welcomed.
4. All passed systematic production standard in waterproof,
shockproof, temperature resistance, humidity resistance, high
definition.
5. 24 hours standby after-sales team.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: 1-3 days for sample , 7 days for bulk order .
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and
the courier cost.
