Thailand DLT Protocol 3G Fuel Consumption Monitoring System Long Range

Ask Lasest Price
Brand Name :	Yuxunion
Model Number :	ET800D
Certification :	CE/FCC/ROHS
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000sets/day
Delivery Time :	10-20days

Add to Cart

Product Details
Company Profile

Thailand DLT Protocol 3G Fuel Consumption Monitoring System Long Range

Thailand DLT Protocol 3G Fuel Monitoring GPS Tracker Supports Magnetic Read Card

Features

support 5 levels of signal detection;
support the data resend from signal dead zone function;
support remotely locking vehicle function;
support watching vehicle function;
support SOS alarm function;
support the power-off alarm function;
support the high-voltage under-voltage alarm and alarm functions;
support over speed alarm function;
support parking alarm function;
support illegal door-open, illegal engine-start alarm function;
support fuel consumption detection;
support fuel changing alarm;

ET800D Specification

Dimension:	1129838MM	Channel:	56
Input voltage:	8-36V/DC	Standby battery:	800Mah/2H
Humidity:	5% to 95%	Positoning accuracy:	10m
GPS sensitivity:	Tracking:-161 dB Reacquisition:-161 dB Coldstart:-147 dB	Operating temperature:	-20°C to 70°C
Start:	Cold start : 29 Seconds, average Warm Start:28 Seconds, average Hot Start:1 second,average	LED indicator:	2 indicators showing GSM and GPS status
Accuracy:	Horizontal Position: Autonomous<2.5 Marverage,SBAS<2.0m average Volcity:0.1m/s, Timepulse signal: RMS 30ns	I/O port:	Power: PWR,GND; Input: SOS,ACC,1 analog input; Output: Relay data bus: for Peripherals
Frequency band:	GMS850/900/1800/1900 UMTS850/2100	GSM Module:	HUAWEI MU709S-6
Time interval record:	1S	Speeding record discrepancy:	+ / - 1km per hour .
Memory;	1024 location/ 64kb	Weight:	1kg
Sending information through mobile network:	1 time per min	power consumption:	3W

ET800D Function

GPS Antenna monitor	1. Disconnect alarm 2. Short circuit alarm
Alarm	1. Emergency alarm 2. Drag/Stolen alarm(ACC OFF car moving) 3. SOS rescue 4. Damage alarm 5. In/out of Geofence alarm 6. Over speed alarm 7. Main power disconnect alarm 8. Non-swip card alarm 9. Smart lock/unlock 10. User mobile phone SMS arm / disarm 11. Alarm/location report to user mobile 12. Recover alarm 13. Vehicle moving alarm in arming mode
Battery protection	1. Smart power protection 2. Power saving mode 3. Lower voltage protection
Remote config	1. Remote configuration 2. Control tracker status 3. Mobile phone configuration 4. Mobile arm / disarm
Firmware upgrade	1. PC RS232 upgrade 2. OTA
Fuel monitor	1. Fuel volume monitor 2. Lower fuel level alarm 3. Fuel abnormal increase alarm 4. Fuel abnormal decrease alarm
Locations	1. Fix time report 2. Fix distance report 3. Fix location report 4. Geofence report 5. Speed monitor 6. Milage monitor 7. Mobile phone location request

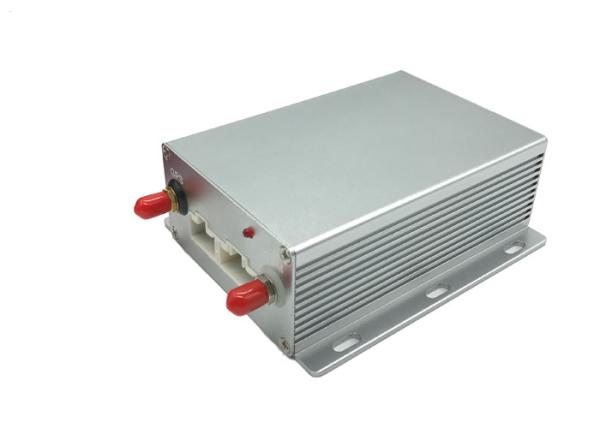

GPS Tracker Size

Tracking Platform

Our Tracking Platform support 100K vehicles online at the same time,and no data lost.

Our software web link:www.webgpsonline.com

Our DOME Account:yuxunion

Password:yux2016

Application

Our GPS Tracker ET800D Appilication for:1.Fleet Management(Bank cars,Hotel cars,Rental cars,Taxi cars,Uber cars),2.Cargo Logistics(Food&Vegetable logistics,Fresh logistics,Cross-border transportation,Long-distance transport),3.Industrial Equipment (Truck,Trailer Truck,Pickup,Tour Bus,Excavator,Oil Tank Truck,School Bus,Public cars)

Successfully Cases

1. On 28th December in 2017,we received a inquiry from Lithuania about "gps tracker for refrigerator trucks, 50 hours battery with temperature sensor",we successfully helped customer to solve this problem in one month time.because our 3G GPS Tracker ET800D has multi-function and can connect many snesors:1.Door Sensor,Temperature Sensor,Microphone,Camera,Vibration Sensor,Magnetic Card Reader,RFID Card Reader,Relay.

2. Above picture is our tracking platform Thailand map,we have grow up together with Thailand market for GPS Traker since 2008,from 2G to 3G,now government rule DLT & NBTC certification,our 3G ET800D has Thailand Edition:ET800D GPS Tracker 3G +Magnetic Card Reader+LED Display+Buzzer(Under DLT & NBTC rule,our ET800D built in Fuel Monitor and can connect:Temperature Sensor,Door Sensor,Microphone,RFID Card Reader,Camera.)

3. Indonesia Customers found us and wanted to make sure that our GPS Tracker can connect with taxi meter ,our ET800D has multi-function and can connect:Taxi Meter,Door Sensor,Temperature Sensor,Vibration Sensor,Camera,RFID Card Reader,Microphone.we helped this Indonesia customers to solve his problem,and now we built a long cooperation with each other.
