Car tracking with remote listening system OBD2 GPS 4g tracker
vehicle fault detection system
Product introduction
1. What is OBD&OBDII?
OBD and OBDII refer to On-board diagnostics and its upgrade
version.
It is a vehicle's self-diagnostic and reporting capability,which
gives the vehicle owner or repair technician access to the status
of various vehicle sub-systems, including a standardized series of
DTCs (Diagnostics Trouble Codes) for remedy purpose.
One popular implementation of OBD is to use the standardized
digital communications port (OBD port, which is usually set near
the driver seat), to access extra real-time data of vehicles, such
as mileage, engine data, fuel consumption etc.
2. What is the "OBD GPS tracker"? What is it:
This is an innovative product integrating three parts into one mini
size device, including GPS tracker, OBD device and 2G/3G/4G
communication terminal.
The device can be plug-and-play installed into most vehicles, and
be powered through OBD port easily.
Benefits:
In contrast to other costly and complicated way -- breaking the
wire of vehicle (which may lead to invalid of vehicle's warranty) ,
OBD GPS tracker can provide vehicle's positioning function,
together with vehicle status monitoring remotely through Telematics
service platform.
OBD GPS tracker is widely used in below scenarios: fleet
management, vehicular monitoring by government, UBI (Usage Behavior
Insurance) and other telematics services, etc.
• Product Specification
| Items | Description |
| Working Voltage | 9V-18V DC |
| Average Current | 180mA@12V |
| Sleeping Current | <10mA@12V |
| Working Temperature | -30℃~+70℃ |
| Storage Temperature | -40℃~+80℃ |
| GPS Accurate | <10m |
| GPS Frequency Range | 1575.42MHZ |
| 4G Bands | FDD-LTE-TDD-LTE: B1/B3/B8/B38/B39/B40/B41 |
| UMTS: B1/B8/1900/2000 |
| GSM: 900/1800MHz |
| WIFI Frequency Range | 2400-2485M |
| OBD Type | OBDII/EOBD |
| SIM Card | Support |
| 4G Antenna | Built-in |
| GPS Antenna | Built-in |
| WIFI Antenna | Built-in |
| USB | 1. Serial Port:3.3V TTL 2.Output Voltage:0V/5V/12V (option) |
| GPS Parameters |
| Cold Start(Average Time) | <30s | Receiver Type | L1 frequency, C/A Code 50 Channel |
| Hot Start(Average Time) | <5s | Receiving sensitivity | <-161dB |
| GPS Accuracy | <10m | Speed accuracy | <0.1 m/s |
• Product Functions
| Function |
| Sleeping | After vehicle closed 5 minutes, the device is into sleeping |
| 4G Internet | Supporting 4G Internet |
| Communication Protocol | TCP Protocol |
| WIFI | WLAN 802.11b/g/n, support to create WIFI hotspot |
| Internet Reconnect | Internet Automatically Reconnect when it breaks |
| Parameters Setting | IP Address,Port,APN Reset and also, can reset password to protect
setting |
| GPS Location Function |
| Reading Data | Latitude and longitude,Time,Number of
satellites,Speed,Direction,ACC,Voltage,OBD Speed, Mileage, Fuel… |
| AGPS | LAC and CellID |
| History | Automatically Report Real-time GPS Tracking |
| Time-Interval | 5s,10s,30s,60s can set for reporting. |
| Alarm Functions |
| Vehicle Starting Alarm | Yes |
| Vehicle Stopping Alarm | Yes |
| Vehicle Lower Voltage Alarm | Yes |
| Idle Too Long Alarm | Yes |
| Vehicle Water Temperature Alarm | Yes |
| Speed Alarm | Yes |
| Vehicle Collision Alarm | Yes |
| Trailer Alarm | Yes |
| Driver Fatigue Alarm | Yes |
| Device Power On Alarm | Yes |
| Device Power Failure Alarm | Yes |
| GPS Location Too Long Time Alarm | Yes |
| Driver Behavior Analysis Alarm |
| Driver Hard Acceleration | Yes |
| Driver Hard Decelerate | Yes |
| Driver Hard Cornering | Yes |
| Driver Hard Speed | Yes |
| Driver Hard Idle Speed | Yes |
| Vehicle Data Reading |
| Vehicle Data | Voltage Mileage Fuel Engine speed Vehicle Speed Air Flow Air Inlet Temperature Intake Manifold Pressure Fault Light Status ECU Number of Fault Codes Coolant Temperature Vehicle Ambient Temperature Fuel Pressure Atmospheric Pressure Valve Position Sensor Accelerator Pedal Position Engine Running Time Fault Travel Mileage Remaining Fuel Capacity Engine Load Long-Term Fuel Correction Ignition Advance Angle |
| Vehicle Diagnostic Reading | Yes |
| OTA Function |
| OTA | Yes |
| Remote Reset | Yes |
| Remote Access | Yes |
| Remote Resetting | Yes |

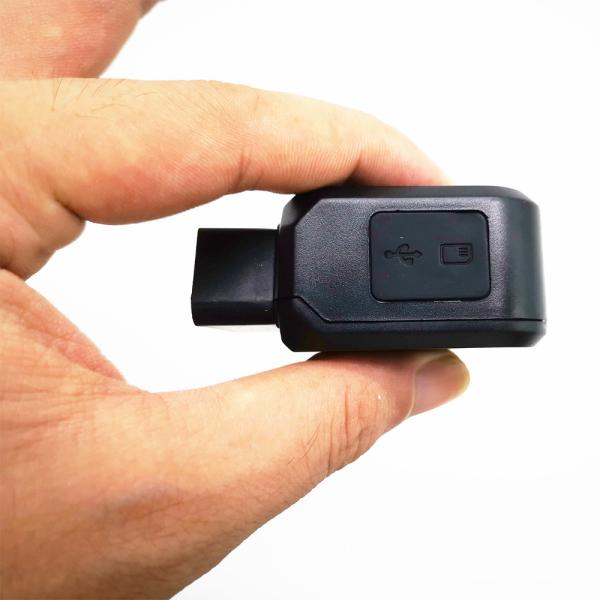

• Product Pictures
• FAQ
1. Whether to support sample purchase?
- Yes, We support single sample purchases.
2. Sample delivery time?
- 4-6 days after payment.
3. Would you support OEM & ODM service?
- Yes, definitely. We welcome OEM & ODM to join .
4. What is your terms of packing?
- Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your
authorization letters.
5. Do you have product certisfication?
- Yes,we have CE FCC IS9001:2008 certisfication.
