Yuxunion Night Vision ADAS Warning System FHD 1080P DVR Recorder
Car Alarms
• SPECIFICATION
| Type/specification | YX08 |
| Specification |
| CPU | SGKS8611 |
| Internal storage | 2GBit |
| Screen | 3’’ IPS MIPI 320*640 |
| Front camera | JXF22(1080P),MIPI,4 glass,F2.0,140° |
| Center camera | USB Camera,640X480,4 glass,F2.0,120° |
| Coding/code rate | H.264 8Mbps |
| G-sensor | SC7A20 |
| RTC/Battery | Shared lithium battery, 290mA |
| WIFI | IRRTL8189ES,2.4GWIFI, support AP |
| GPS | External 2.5mm headphone jack, support AGPS, UART |
| AUDIO | 1 output, 8ohm, 0.75W |
| Microphone | 1 output, -40db±3db |
| Power interface | Mini USB 2.0 Port |
| TF card | Max support 128GB/C10 |
| Button | 4 physical buttons, adaptive based on software features |
| Working voltage | DC 5V |
| Rated current | <1.2A |
| Standby average current | <3mA |
| Storage temperature | -30℃ ~ +85℃
|
•Product Functions
1)Fatigue driving warning
Through facial detection, the DSM detects driver's eyes are
abnormally keeping closed and
then warning. The warnings are divide into different levels according to vehicle speed. The
warning way is voice warning.2)Distraction warning
Through facial detection, the DSM detects driver's head turns
around and then warning. The
warnings are divide into different levels according to vehicle
speed. The warning way is voice
warning.3)Smoking warning
Through gesture detection, the DSM detects driver is smoking and
then warning.
The warnings are divide into different levels according to vehicle
speed. The warning way is voice warning.
4)Calling warning
Through gesture detection, the DSM detects driver's calling and
then warning. The warnings
are divide into different levels according to vehicle speed. The
warning way is voice warning.
•Features of Driver monitor system
1.APP calibration,easy to installion .
2.Fatigue driving & Distraction driving warning .
3.Driver bad behavior warning.
4.Real-time GPS tracking.
5.Double DVR record ,Greater security.
6.Vehicle-mounted WI-FI network sharing, Enjoy quality driving
experience.

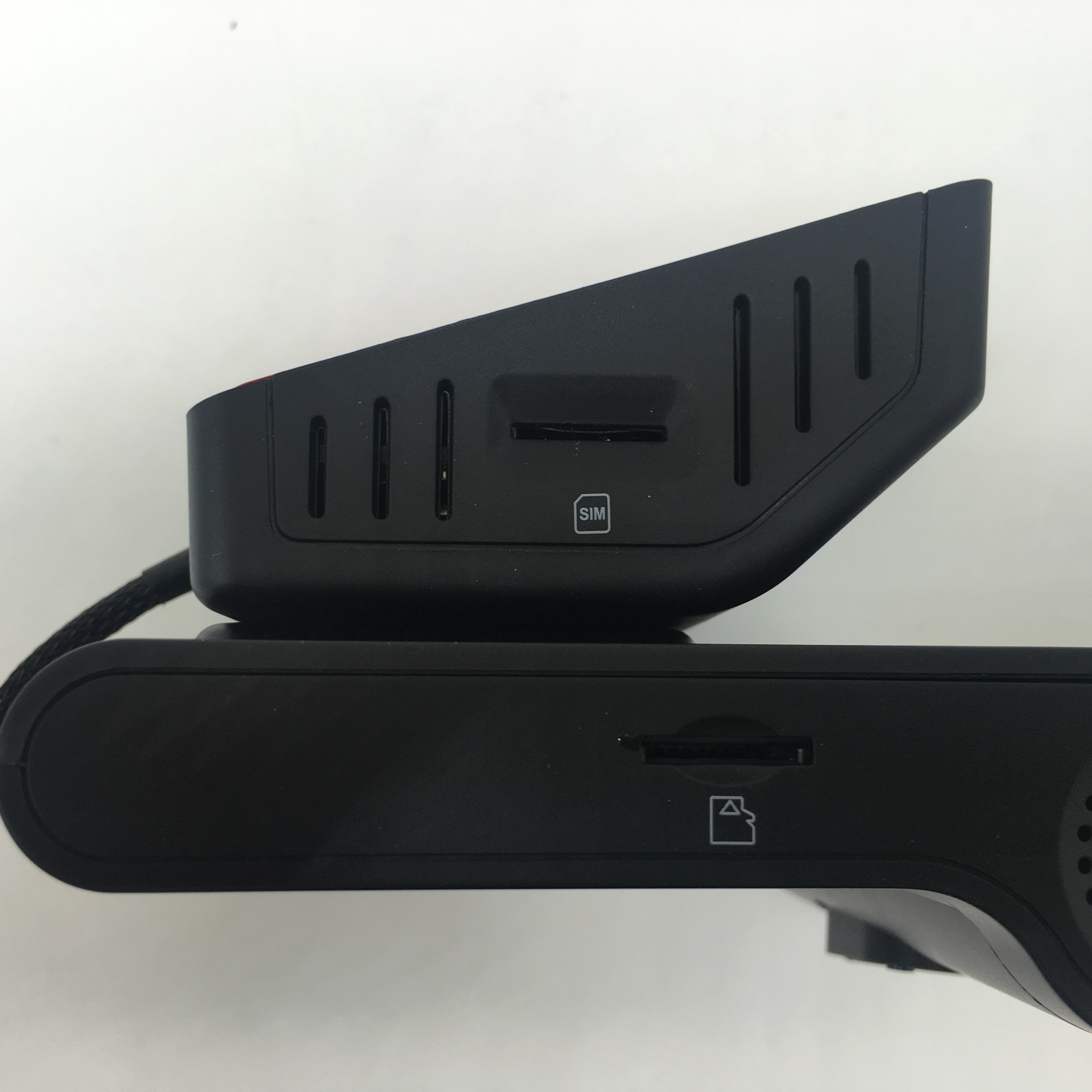

• Detail Pictures
