3D 360 Degree Panoramic Blind Spot Monitoring System Car Driving Safety Device

Ask Lasest Price
Brand Name :	YUXUNION
Model Number :	YX902-3D
Certification :	FCC
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	10K/month
Delivery Time :	5~8 Work Days

Add to Cart

Product Details
Company Profile

3D 360 Degree Panoramic Blind Spot Monitoring System Car Driving Safety Device

Car Driving Safety Device 3D 360 Degree Panoramic Blind Spot Monitoring System

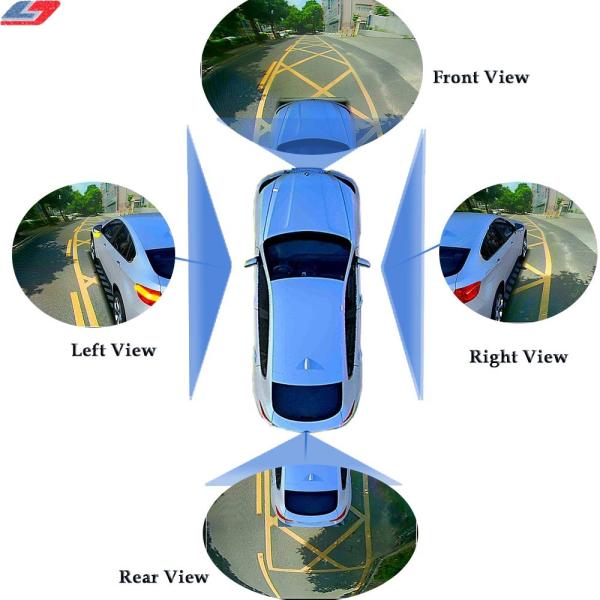

The new version of the 3D surround imaging system takes the driving experience to the next level. Let the parking no longer worry, let the novice driver feel full of security.This system provides you an excellent driving experience as in luxury cars.The top algorithms enable perfect accuracy of the bird view. The 4 cameras keep recording from the 4 sides of the car.

Attention Here!!!

Product Name	3D 360° Panoramic Driver Assist System
Material	Metal
Function	3D Stereo Model, 360° No Blind Spots, 190° Super Wide-Angle View
Package	White Gift Box

Recording Function:

1. The system will automatically start recording when the engine is on, with loop recording for every 5 minutes. For example, if you use a 2GB TF card, it can last about 1 hour.

2. When the car is ignited and the monitor doesn't show the video from the cameras, the system will record in the background. The bird view and the front view will be recorded.
3. When the car is ignited and the monitor is showing the video from the cameras, all the scenes displayed on the monitor will be recorded. ( It could be the bird view and one view of left, right, front, or rear view).

4. There will be an USB interface with the system which can be used to connect a PC to copy data from the TF card.

PRODUCT SPECIFICATION

360°Camera Parameters	Term	Description	Specification
	Camera	Image sensor	SONY225
		Pixel Pitch	720P
		Video Resolution	1280*720
		Horizontal Definition	130TVlines
		Video format	NTSC
		Dynamic Range	>80dB
		SNR	>50dB(AOC on)
		Minimum Lumination	0.15Lux
		Angle	180 degree
		Video output	CVBS 1.0VPP 75Ohm/VGA
	Host	Working Voltage	DC 12V
		Disk Capacity	TF CARD:32G SDIO3.0/SDIO 2.0
		Disk Capacity	USB Disk: 128g USB 2.0
		Voltage	DC 9V~16V
		Watts	10W max
		Currency	< 600mA (full load with recording)
		Processor	3520
		System Startup time	10S
		VideoStartup time	15S
		Video Output Format	CVBS/VGA
		Video Signal Format	N/P
		Language	Chinese/English
		Working Temperature	.-30/+85℃
		processor model	3520 DV300
		Storage Temperature	.-45/+95℃
		Size	123(L)81(W)25(H) MM

3D special Parameters	Video	Video Interface	BMWMIni connector
		Input/output impedance	75
		Amplitude	Typical 1Vpp, 1.2Vpp Maximum
		Bandwidth	8M
		Sampling Frequency	13.5MHz
		Video Resolution	1280*720
		DP	<0.8 degree TYP
		DG	< 3% TYP
		SNR	70dB
	Indicator Lamp/Blinker	High Beam	Optional
		Left/Right Turning Blinker	YES
		Reversing lamp	YES
	G-sensor	BM250E	Bosch
	Compression	Algorithm	H.264 Baseline@L3.1
		Resolution	1440*960P @30fps
		Bitrates	5Mbps,2Gbyte/Hour
		Recording Media	USB Disk(High Priority)/TF
	Disk Capacity	TF CARD:	32G SDIO3.0/SDIO 2.0
	Disk Capacity	USB Disk:	128G USB 2.0
	Power Consumption	4-CH DVR+360 panorama mode	350mA
		4-CH DVR Mode	180mA
		Sleeping Model	< 10mA
	Weight		220g
	Environments	Working Temperature	.-30/+85℃
		Storage Temperature	.-45/+95℃
		Humidity	0-95%
	Voltage	Working Voltage	9.5-36V

Application Scenario
